ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester
ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester
ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester
ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester
ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester
ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester

  • New

ISDT

ISDT BattGo BG-8S Smart Battery Checker Balancer Receiver Signal Tester

Sale price €33,95

Shipping calculated at checkout

9999 in stock

Spend €250 to get free shipping

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specification:?
Working voltage: 5.0V-36V
Input voltage: 0.8V-15V
Input voltage 2-8S: 0.8V-4.8V
Battery cells: 1-8S
Voltage measurement accuracy: ¡À0.005V@4.2V
Balancing cells accurancy: ¡´0.005V
Support USB charging: QC 2.0/3.0, BC1.2, Maximum output 12V/2A
Suppport smart battery: Charging and discharging setting,?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?read battery info and usage history.
Supported Batt.Type: LiHv(1-8S)/LiPo(1-8S)/LiFe(1-8S)
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Lilon(1-8S)/NiMH/Cd(1-10S)
Display: 2.4//320x240 260,000 color IPS LCD
Dimension: 80 x 55 x 19mm
Weight: 59g
Operating Temperature: 0-40¡ãC
Working Humidity: 10%-90%RH( noncondensing )
Storage Temperature: -20-60¡ãC
Storage Humidity: 5%-90%RH( noncondensing )
Manual:?Click Here
Click?Here?to Download Firmware in iSDT

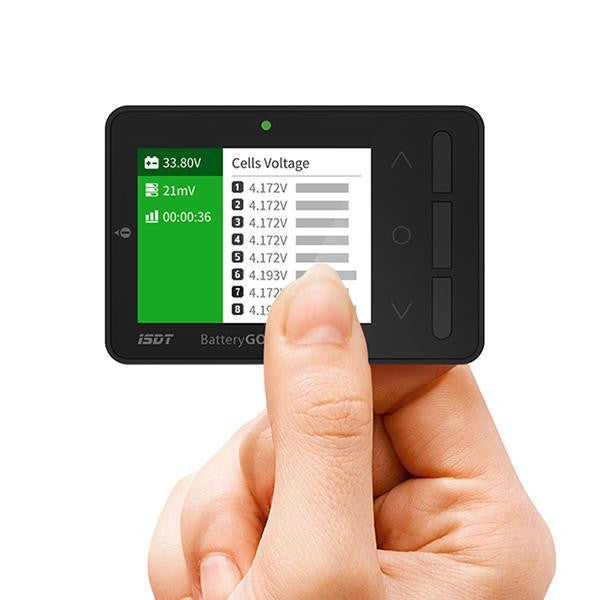

Smart Battery Checker
260,000 color display visible under strong sunlight.
Exquisite and powerful BG-8S smart battery checker fully support BattGO technology.
?
Make battery smarter
Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your batter. Easy to read cells voltage, battery circulations, working parameters and fast set to your preferred settings.
?

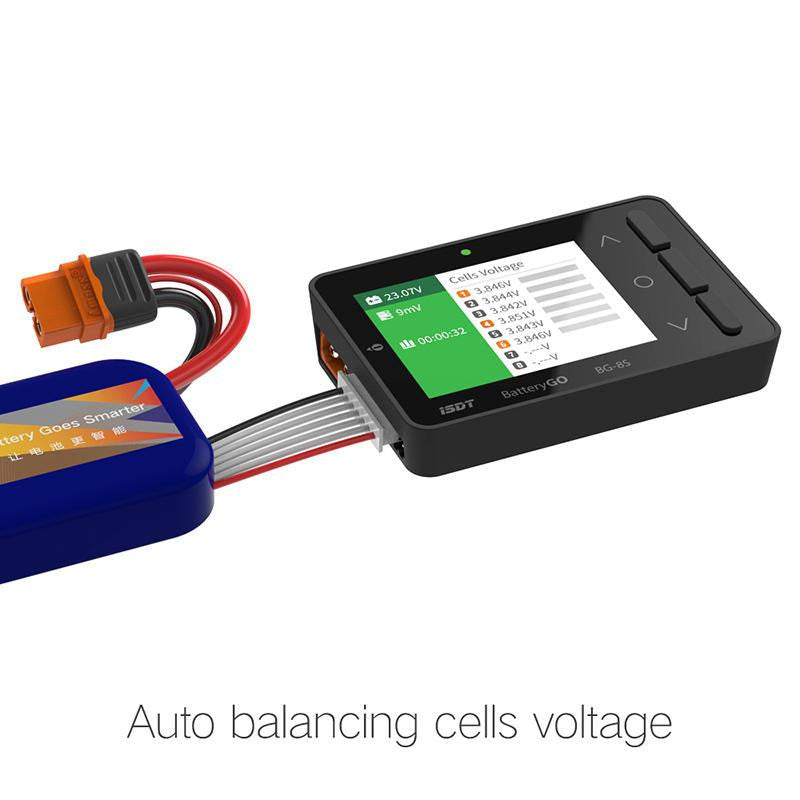

Auto balancing cells voltage
Advanced auto balancing algorithm, make sure every cell is well balanced. After completion auto into low power mode.
?

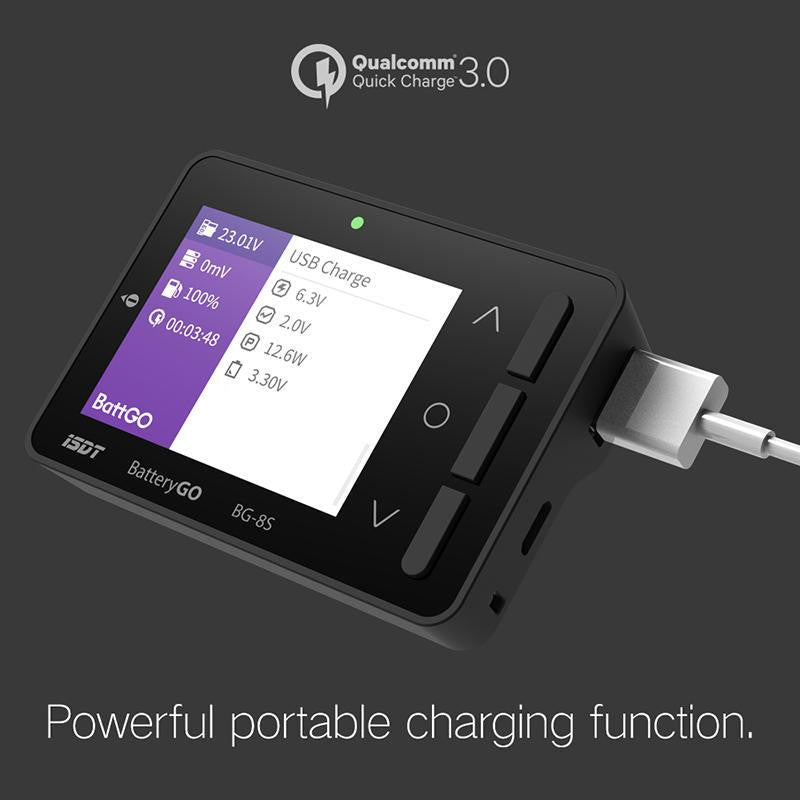

Powerful portable charging function
Connecting to your battery, BG-8S can become your power bank for mobile devices. Support Qualcom QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A.

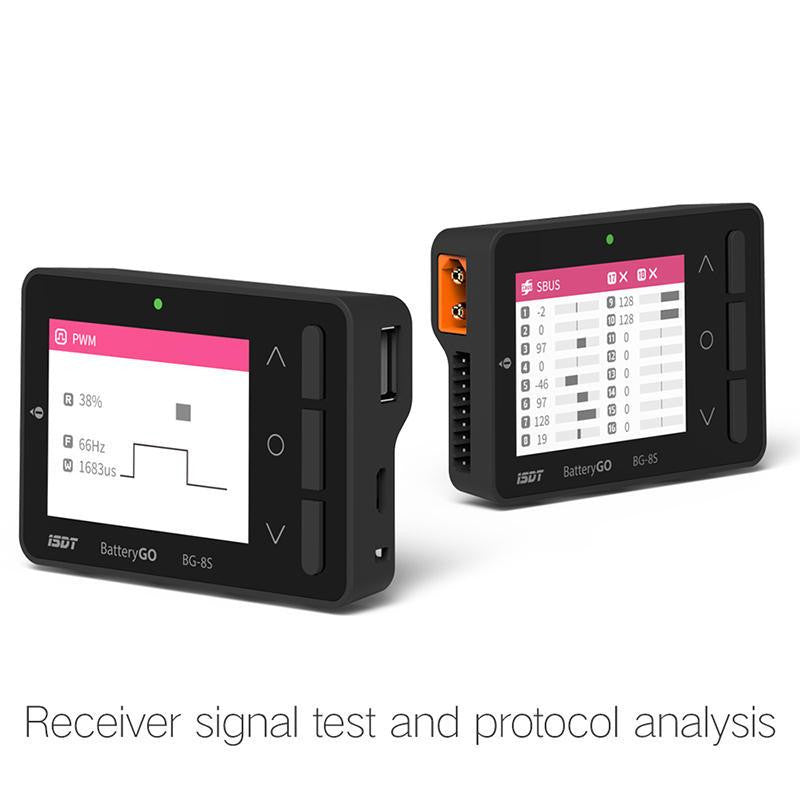

Receiver signal test and protocol analysis
With standard 3 pin plug, BG-8S cab detect BEC output voltage. BG-8S also support multiple protocol analysis including PWM, PPM&S.BUS and etc. With future firmware upgrades more Protocol analysis will be supported.
?

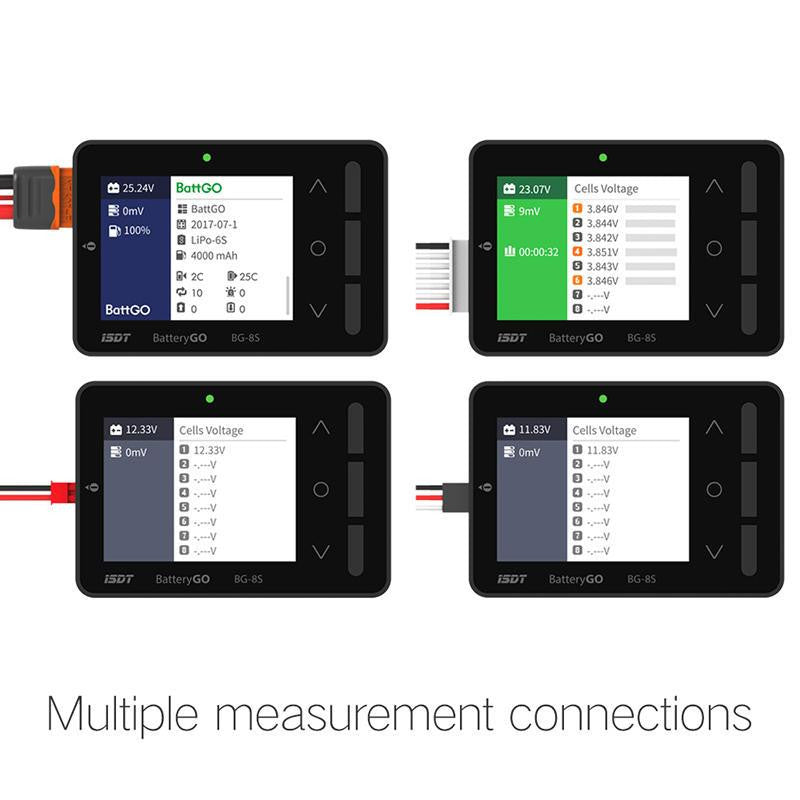

Multiple measurement connections
Support XT60/XT60i, XH2.54 1-8s balance lead, XH2.54 3 pin, JST ETC to measure voltage. Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.
?
Support USB upgrade, multilanguage options
BG-8S has Micro USB port, easily connect to PC to perform firmware upgrades. ?
?
XT60i Meant for BattGo
BG-8S uses XT60i connector which was jointly developed by ISDT and Amass, support BattGO technology, and highly compatible with original XT60 plugs.
?
Package Included:?
1x ISDT BG-8S Smart Battery Checker
